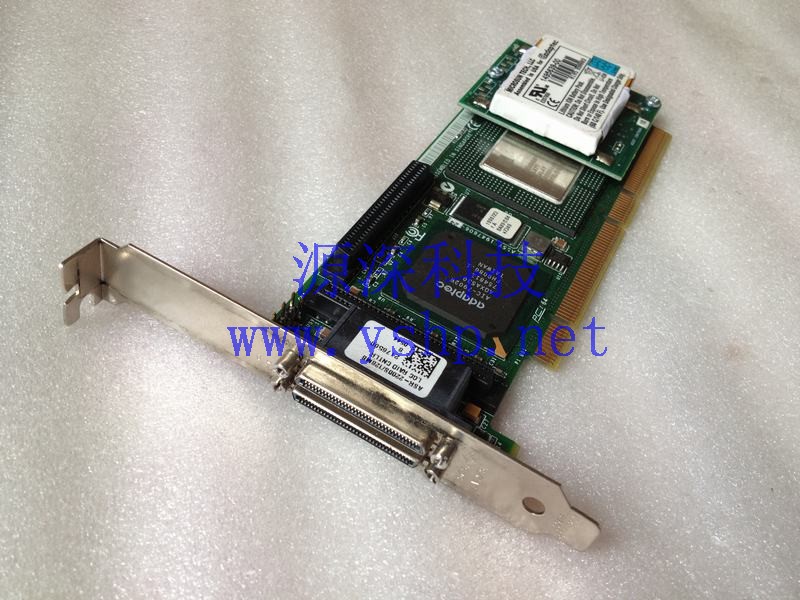

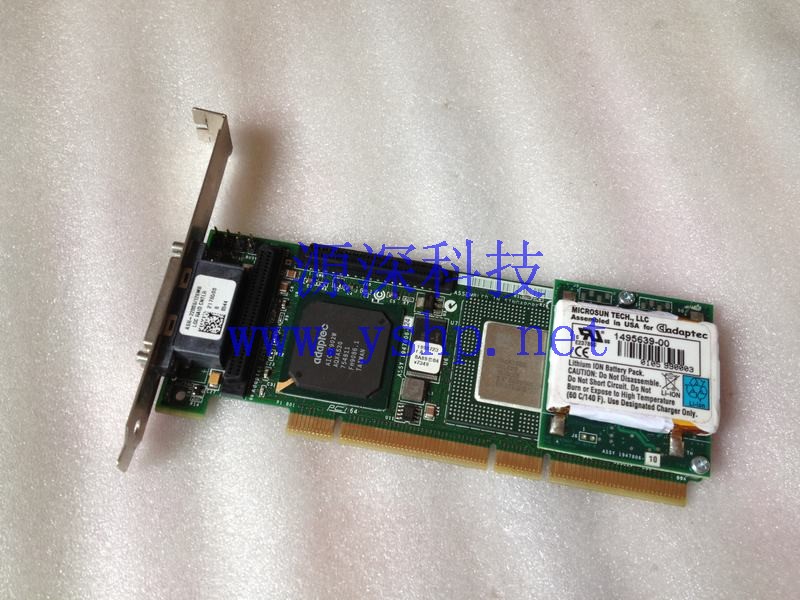

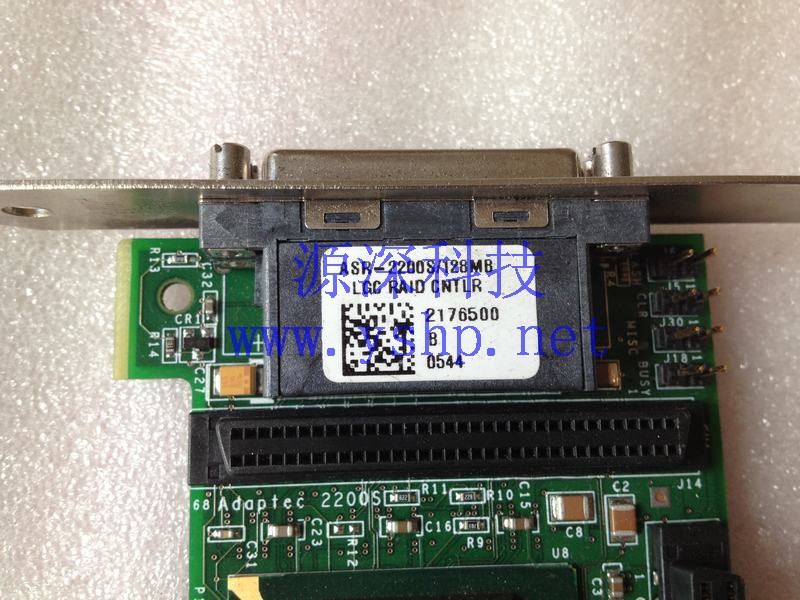

Shanghai adaptec ASR-2200S 128M SCSI Raid card with battery
上海源深科技&服务器配件供应商
产品名称:上海 adaptec ASR-2200S 128M SCSI阵列卡 含电池
备件号:ASR-2200S
Supported Operating Systems | |
Microsoft Windows Novell NetWare Red Hat Linux SuSE Linux SCO Openserver SCO UnixWare Caldera Open Unix For a detailed list see ASK Answer ID 10933 |
Benefits | |
Low-profile MD2 design ideal high-density server & workstation solution, 64-bit/66 MHz PCI |
Key Differentiators | |
|
Customer Needs | |
Ideal for entry-level to mid-range and high-density servers and workstations requiring up to 30 disk drives |
System Environment | |
Mid-range SCSI servers and workstations, conventional and rackmount |
Cache Memory | |
64 MByte (onboard) |
RAID Levels | |
0, 1, 10, 5, 50, JBOD |
Key RAID Features | |
Optimized disk utilization Online RAID Level Migration Online capacity expansion Immediate RAID availability (background initialization) S.M.A.R.T. support SES/SAF-TE support |
Number of devices | |
Up to 30 SCSI devices (15 per channel) |
Bus System Interface Type |
|
64-bit/66MHz PCI |
External Connectors | |
Two 68-pin VHDCI |
Internal Connectors | |
Two 68-pin high-density |
Data Transfer Rate | |
Up to 320 MB/sec per channel |
System Requirements | |
Available 5 volt or 3.3 volt, PCI 2.2 compliant PCI slot |
适合机器:服务器
保修期限:保修一个月
感谢您惠顾源深科技,本公司备有全系列服务器配件,出售的配件都可以开具正规机打发票,如果无法在我们网站上找到自己需要的产品,可拨打下方的联系电话直接询问,谢谢!
联系人:杨 先 生
手机:15900814815
上海源深科技&服务器配件供应商
产品名称:上海 adaptec ASR-2200S 128M SCSI阵列卡 含电池
备件号:ASR-2200S
Supported Operating Systems Microsoft Windows
Novell NetWare
Red Hat Linux
SuSE Linux
SCO Openserver
SCO UnixWare
Caldera Open Unix
For a detailed list see ASK Answer ID 10933
Benefits Low-profile MD2 design ideal high-density server & workstation solution, 64-bit/66 MHz PCI
Key Differentiators
- Optimized Disk Utilization
- RAID Level Migration
- Online capacity expansion
- Background initialization (for immediate RAID availability)
- S.M.A.R.T. and SAF-TE support
- Hot-swap disk drive support for easy replacement
- Hot-spare disk support with automatic rebuild
- Supports bootable arrays
Customer Needs Ideal for entry-level to mid-range and high-density servers and workstations requiring up to 30 disk drives
System Environment Mid-range SCSI servers and workstations, conventional and rackmount
Cache Memory 64 MByte (onboard)
RAID Levels 0, 1, 10, 5, 50, JBOD
Key RAID Features Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
SES/SAF-TE support
Number of devices Up to 30 SCSI devices (15 per channel)
Bus System Interface Type
64-bit/66MHz PCI
External Connectors Two 68-pin VHDCI
Internal Connectors Two 68-pin high-density
Data Transfer Rate Up to 320 MB/sec per channel
System Requirements Available 5 volt or 3.3 volt, PCI 2.2 compliant PCI slot 适合机器:服务器
