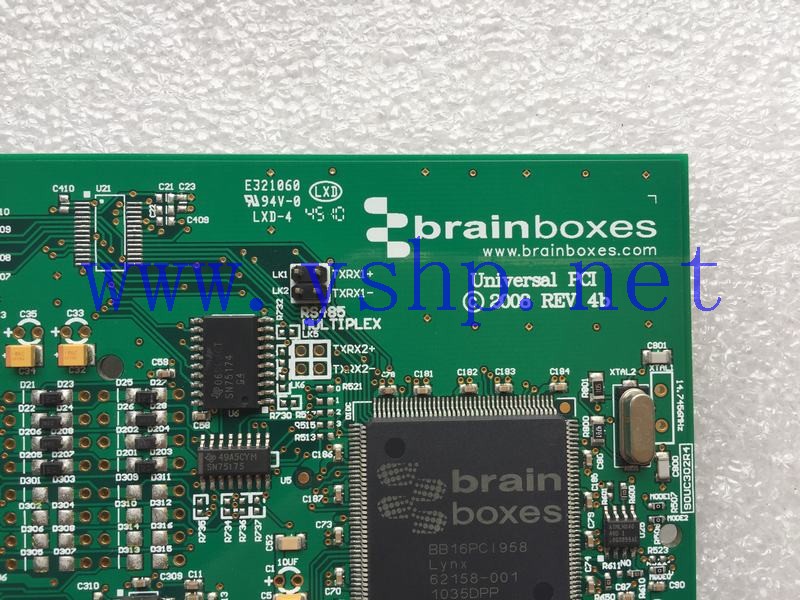

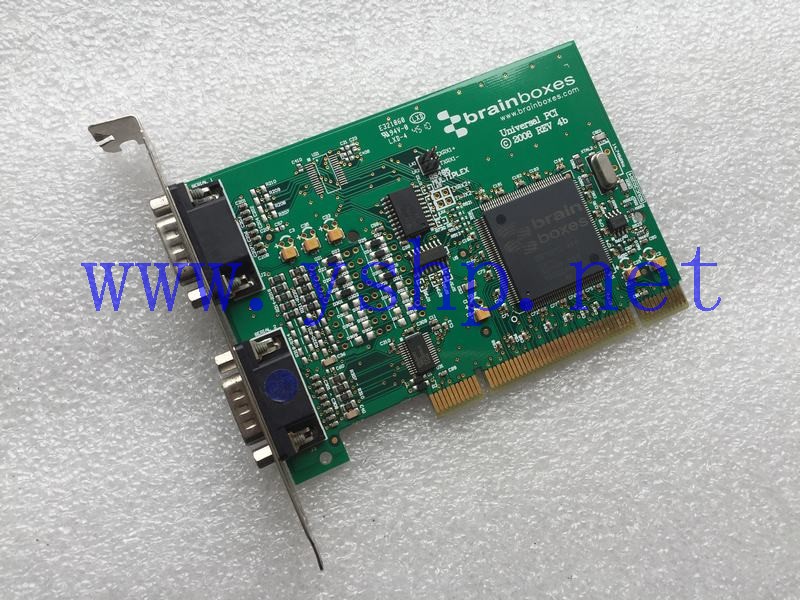

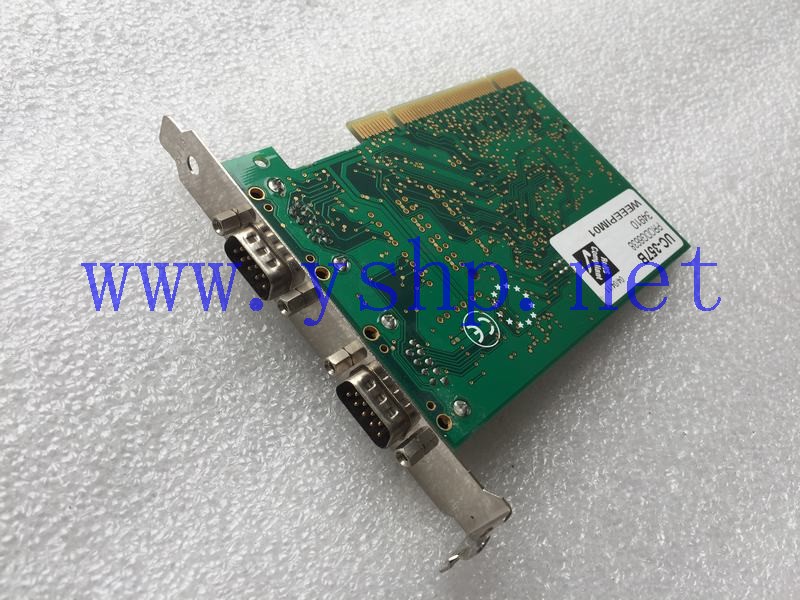

产品名称：Brainboxes Universal PCI REV 4b UC-357B PRODG6638 34910 WEEEPIM01

备件号： UC-357B



Serial Port
Ports	2
Protocol	RS232 + RS422/485
Connector	DB9 Connector - 9 Pin Male
UART	Brainboxes 16C958
UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Tx FIFO Size	128
Rx FIFO Size	128
Operating Distance	RS422/485 Standard (4000 ft : 1200 metres) / EIA - RS232 Standard
Cable	No Cable; Integrated Connector
Serial Port Settings
Max Baud Rate	921,600
Data Bits	5,6,7 or 8
Parity	Odd, Even, None, Mark or Space
Stop Bits	1, 1.5 or 2
Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx Modes	Point to Point (RS232), Full Duplex, Half Duplex Autogating, Hardware Autogating, TxD always/ RTS true enabled, RxD always enabled, RxD RTS true disabled, CTS forced true (RS422/485)
General
PCB Layers	4
Form Factor	Standard Height
Includes Printer Port	No
Galvanic Isolation	No
Power Consumption	550mA @ 5V
Product Weight	0.08 kg
Product Dimensions	136(l) x 18(w) x 120(h) mm
Packaged Weight	0.191 kg
Packaged Dimensions	160(l) x 135(w) x 45(h) mm
GTIN (barcode)	837324000481
Operating System Compatibility
Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Windows Server 2012 Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000 DOS
Interface
PCI 3.0	Peripheral Component Interface

适合机器：工业设备

保修期限：保修一个月
