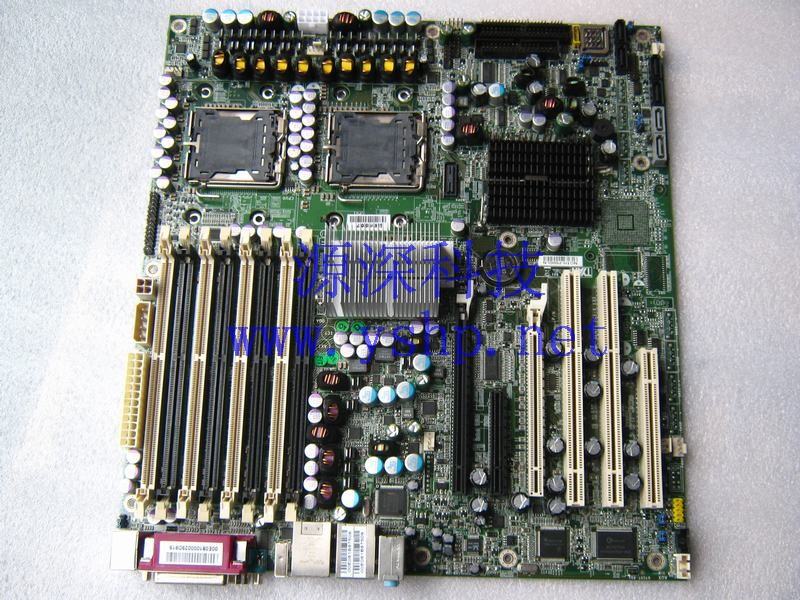

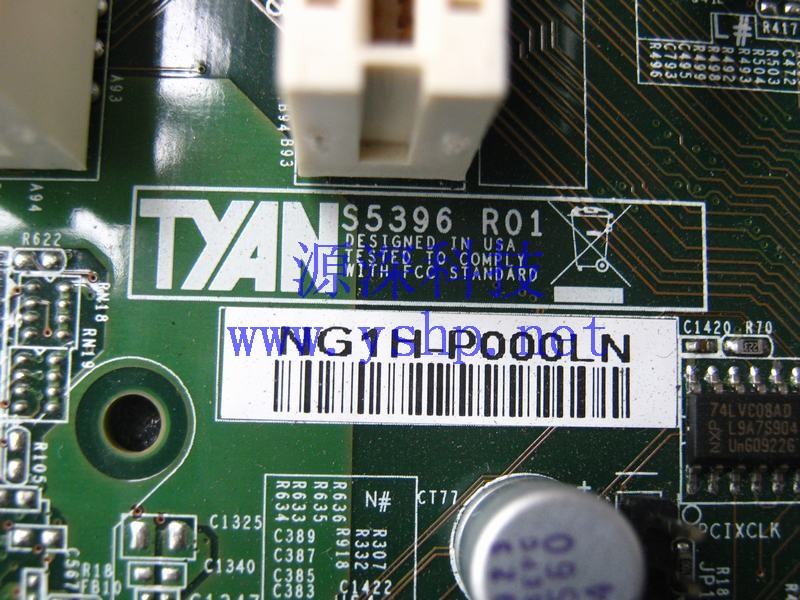

产品名称：泰安 TYAN S5396 R01 双路771 服务器 工作站 主板

备件号：S5396

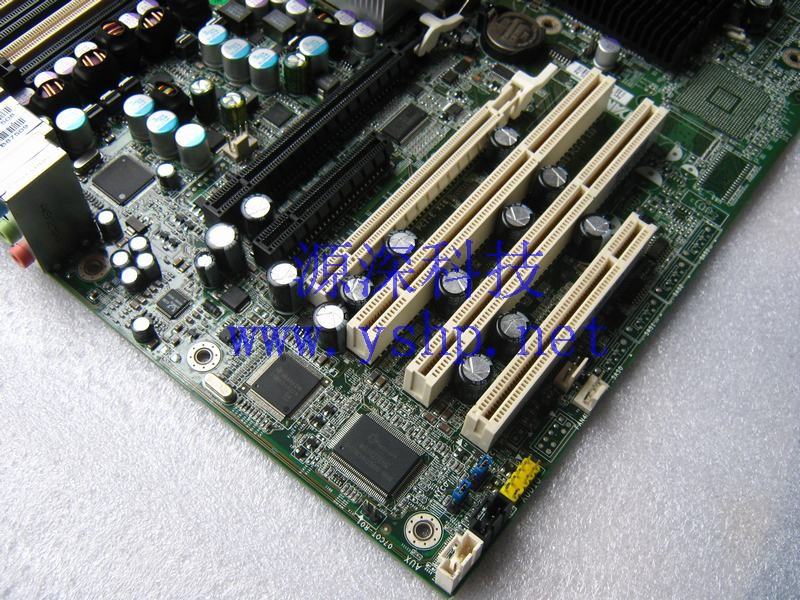

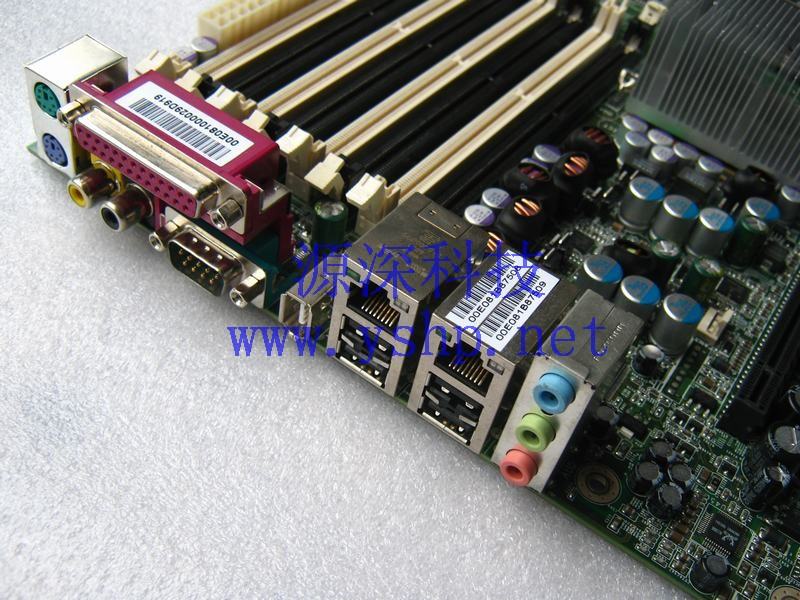

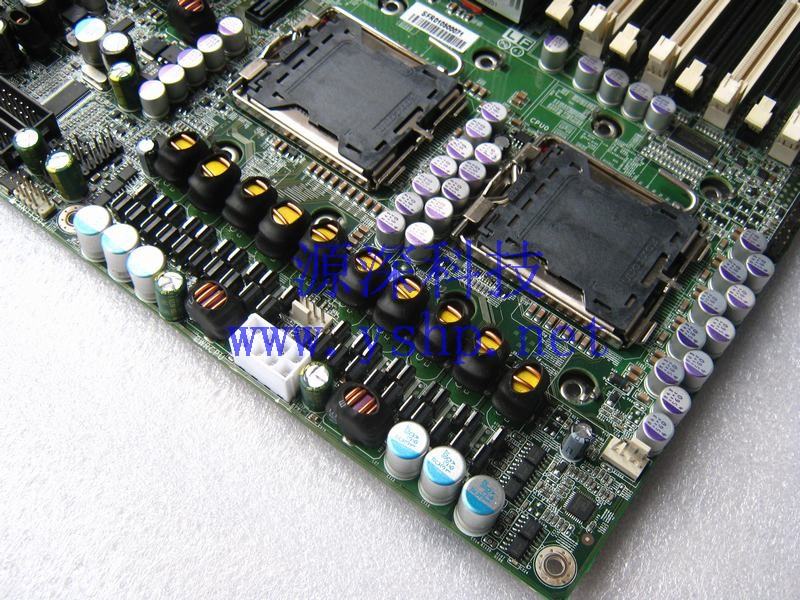

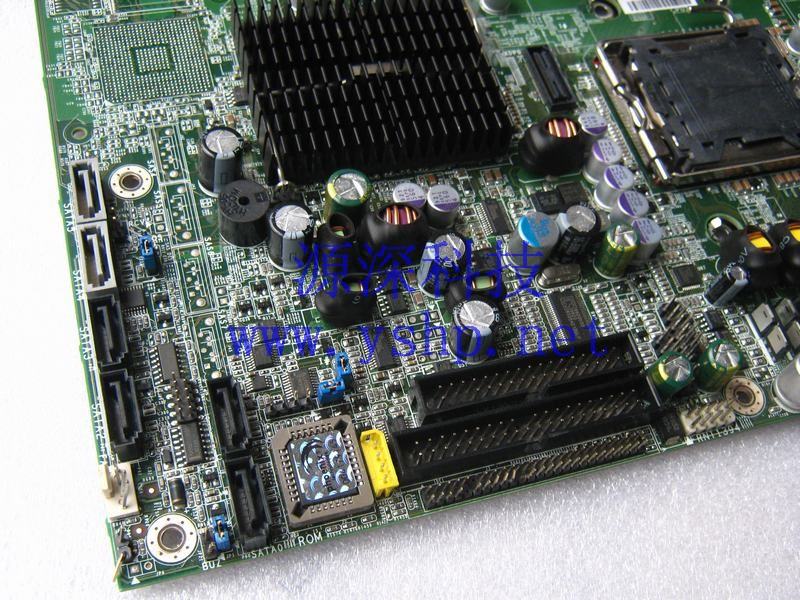

Processor  • Dual LGA771 sockets  • Supports up to two Intel® Xeon® Woodcrest    Processors( 5000/5100 Series Dualcore);    Clovertown Processors (5300 Series, Quadcore);    Wolfdale-DP Processors (45nm, dual-core);    Harpertown Processors (45nm, quad-core)  • processors  • 1.33 / 1.06GHz FSB  • VRD 11.0 Chipset  • Intel 5400 MCH + 6321ESB Chipset  • Support for 1.33 / 1.06GHz FSB  • Winbond W83627EHG Super I/O Chip Memory   • Eight 240-pin DDR2 FB-DIMM sockets  • 4 memory channels  • Supports ECC DIMMs  • Maximum of 64/32 GB DDR2-533/667 Expansion Slots  • Two (2) PCI Express x16 slots (from MCH, PCI-E     Gen2)  • One (1) PCI Express x8 slot (x8 signal from     6321ESB)  • Two (2) PCI-X 133/100MHz slots from 6321ESB  • One (1) PCI 32-bit 33MHz slot  • Total six expansion slots Integrated I/O Interface  • Two USB 2.0 headers  • Six standard/integrated SATA-II connectors  • One IDE and one Floppy CON  • Eight SAS Ports  • One 4-pin CD-in and one 4-pin Aux header  • One 9-pin front panel audio header Back Panel I/O ports  • Stacked PS/2 keyboard and mouse connectors  • One SPDIF in/out  • Stacked Serial (one) and parallel (one)      connectors  • Two stacked dual USB ports w/ GbE RJ-45     connectors  • FireWire (1394a) connector  • Stacked Line-in, Line-out, Mic-in audio    connectors System Management  • ADI Hardware Monitor with PECI circuit  • CPU thermal & voltage monitor support  • Five (5) fan headers (4-pin configuration) Power   • EPS12V/SSI (24+8+4X1 pin) power connectors Note: If Slot6 (PCI-E X16 slot, the one closest to the memory slots) is used, 4X1 pin power connector must be plugged in)

Integrated LAN Controllers  • Intel Gigabit from 6321ESB (w/ dual ports     "Gilgal" 82563)  • Two RJ-45 ports with LEDs Integrated PCI 1394  • TI TSB43AB22 1394a controller  • 1394a channel for rear (connector)  • 1394a channel for front (header) Integrated Audio  • HDA link  • RealTek ALC888 controller (High Definition     Audio)  • Line-in, Line-out, Mic-in rear ports  • Front panel audio header  • CD-in, Aux headers (4-pin configuration)  • SPDIF in/out connector in rear Integrated Serial ATA II  • Six (6) SATA-II ports running at 3.0 Gb/s  • RAID 0, 1, 5, 10 support in Windows Integrated SAS  • LSI 1068E SAS Controller  • PCI-E x4 interface to 6321ESB  • Eight SAS Ports Server Management  Baseboard Management Controller (BMC) from daughter card M3291  • Tailored for IPMI 2.0 specification  • Supports remote power on/off and reset       (IPMIover-LAN)  • Server Management Daughter card via built-in     2x25 header Trusted Platform Management (TPM)   • Infineon SLB9635TT 1.2 BIOS  • PhoenixBIOS® on 8Mbit Flash ROM  • Support APM 1.2, ACPI 2.0  • Serial Console Redirect  • PXE via Ethernet, USB device boot  • PnP, DMI 2.0, WfM 2.0 Power Management  • User-configurable H/W monitoring  • Auto-configuration of hard disk types  • Multiple boot options  • 48-bit LBA support Form Factor  • SSI / Extended ATX (12” x 13”) Regulatory  • FCC Class B (DoC)  • European Community CE (DoC)

适合机器：服务器



保修期限：保修一个月
