上海 Adaptec PCI AAR 2810SA 8口 SATA 阵列卡 Serial ATA RAID

上海 Adaptec PCI AAR 2810SA 8口 SATA 阵列卡 Serial ATA RAID

  • 上架时间:
    商品点击数:3305
  • 本店售价:面议 Inquiry
    用户评价: 969508902@qq.com
  • 购买数量:

商品描述:

商品属性

上海源深科技&服务器配件供应商

产品名称:Adaptec PCI  AAR 2810SA 8口 SATA 阵列卡 Serial ATA RAID

备件号:AAR-2810SA

The Adaptec Serial ATA RAID 2810SA is an affordable 8-port I/O processor-based SATA RAID controller ideal for midrange workgroup, video, backup, and web servers using Serial ATA drives. Advanced features include Optimized Disk Utilization, Online Capacity Expansion, and RAID Level Migration. Adaptec Storage Manager provides centralized management for Adaptec host-based RAID controllers. Enclosure management support. RAID levels 0, 1, 5, 10, 50 and JBOD. Full OS support.

Supported Operating Systems
  Microsoft Windows
Novell NetWare
Red Hat Linux
SuSE Linux
SCO UnixWare
SCO OpenServer
FreeBSD
VMware ESX Server

For a detailed list see ASK Answer ID 10908
Benefits
  High capacity 8-port RAID card brings advanced Serial ATA features and data protection to midrange and high-end servers using low-cost SATA drives
Key Differentiators

  • Optimized Disk Utilization
  • RAID Level Migration
  • Online capacity expansion
  • Background initialization (for immediate RAID availability)
  • Enclosure Management ready
  • Hot-swap disk drive support for easy replacement
  • Hot-spare disk support with automatic rebuild
  • Supports bootable arrays
Customer Needs
  Ideal for supporting server and workgroup applications where high levels of sustained read and write operations are required, such as video streaming, web content, video-on-demand, security and surveillance, fixed content, and reference data storage
System Environment
  Server
Capacity


Max. array size: 2TB
Max. physical disk drive size: 1TB

Cache Memory
  64 Mbyte
Key RAID Features

  • Optimized Disk Utilization
  • Online RAID Level Migration
  • Online Capacity Expansion
  • Background Initialization
  • SNMP support
  • Enclosure Management Ready
Number of devices
  Up to 8 Serial ATA drives

Bus System Interface Type

  64-bit/66 MHz PCI
Internal Connectors
  Eight Serial ATA ports
Data Transfer Rate
  Up to 1.5 Gbits/sec
System Requirements
  Available PCI slot meeting PCI 2.2 specification

适合机器:IBM服务器

保修期限:保修一个月



感谢您惠顾源深科技,本公司备有全系列服务器配件,出售的配件都可以开具正规机打发票,如果无法在我们网站上找到自己需要的产品,可拨打下方的联系电话直接询问,谢谢!





联系人:杨 先 生

淘宝旺旺:点击这里给我发消息

QQ:
点击这里给我发消息 969508902

MSN:969508902@qq.com

手机:15900814815

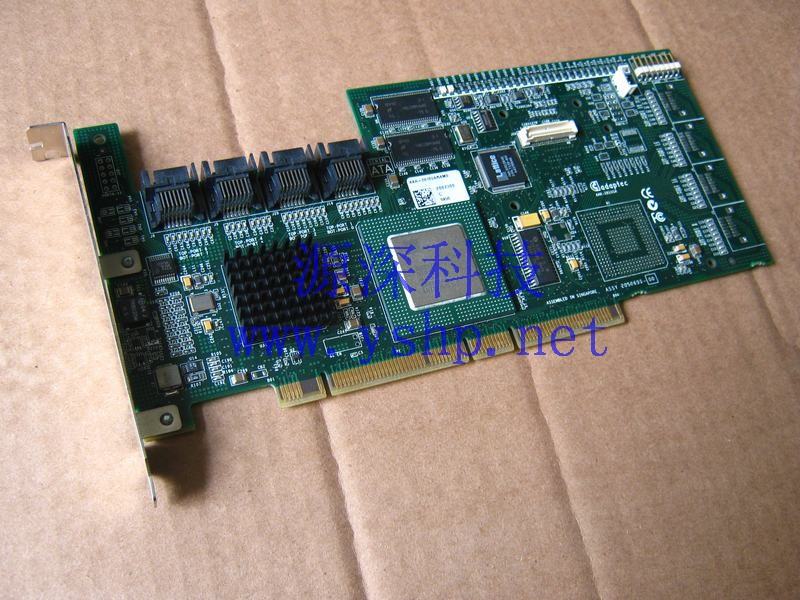

上海源深科技 上海 Adaptec PCI AAR 2810SA 8口 SATA 阵列卡 Serial ATA RAID  高清图片

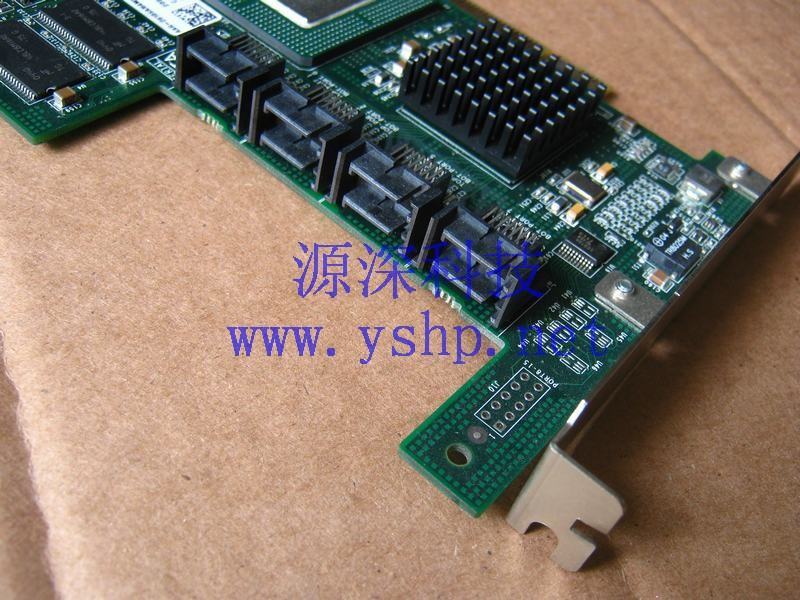

上海源深科技 上海 Adaptec PCI AAR 2810SA 8口 SATA 阵列卡 Serial ATA RAID  高清图片

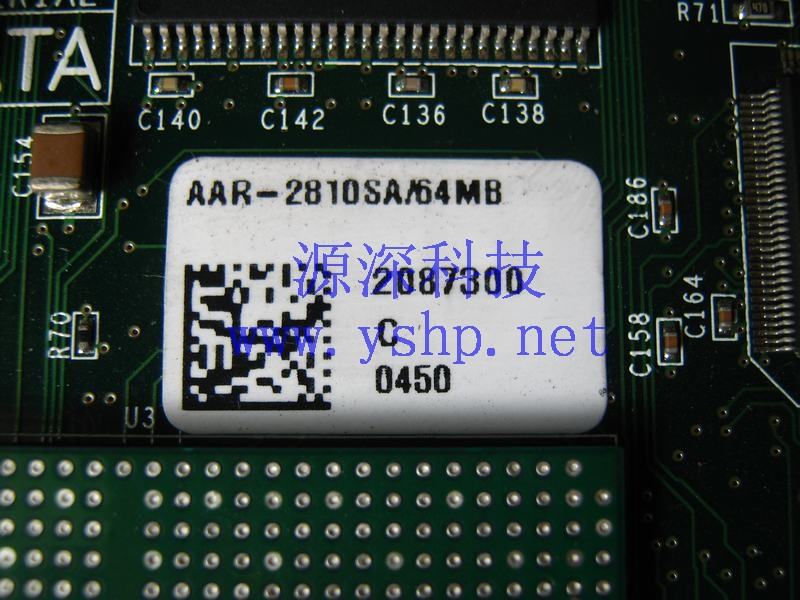

上海源深科技 上海 Adaptec PCI AAR 2810SA 8口 SATA 阵列卡 Serial ATA RAID  高清图片

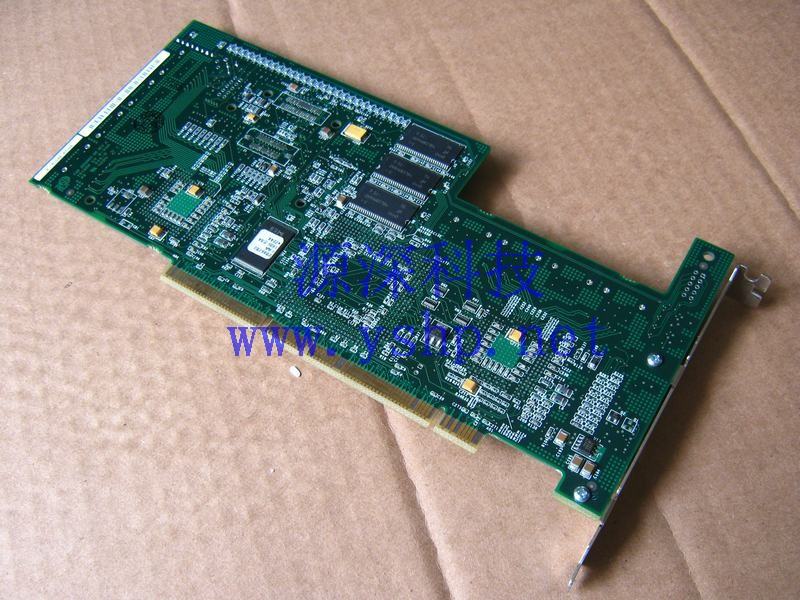

上海源深科技 上海 Adaptec PCI AAR 2810SA 8口 SATA 阵列卡 Serial ATA RAID  高清图片
