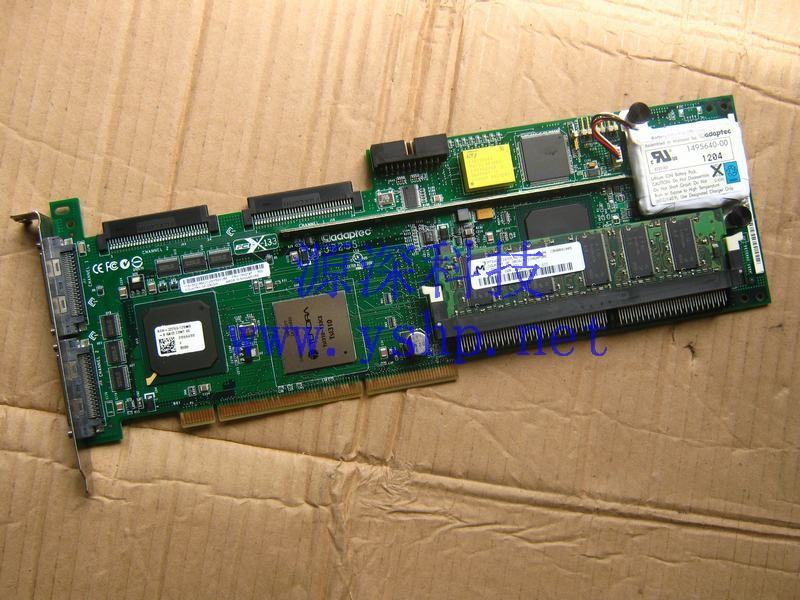

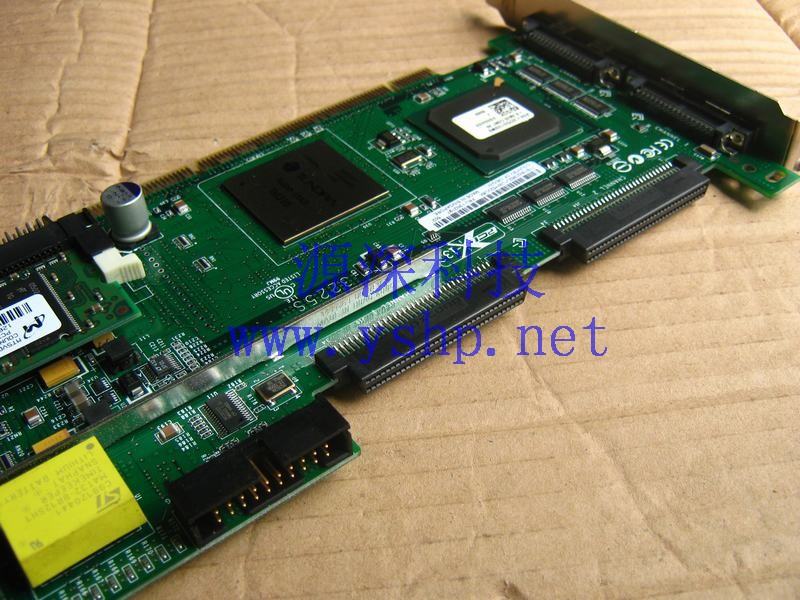

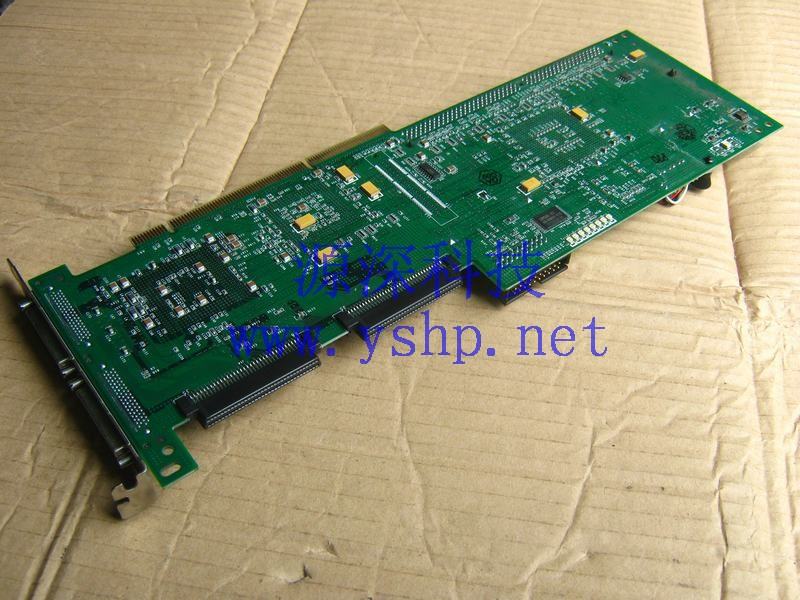

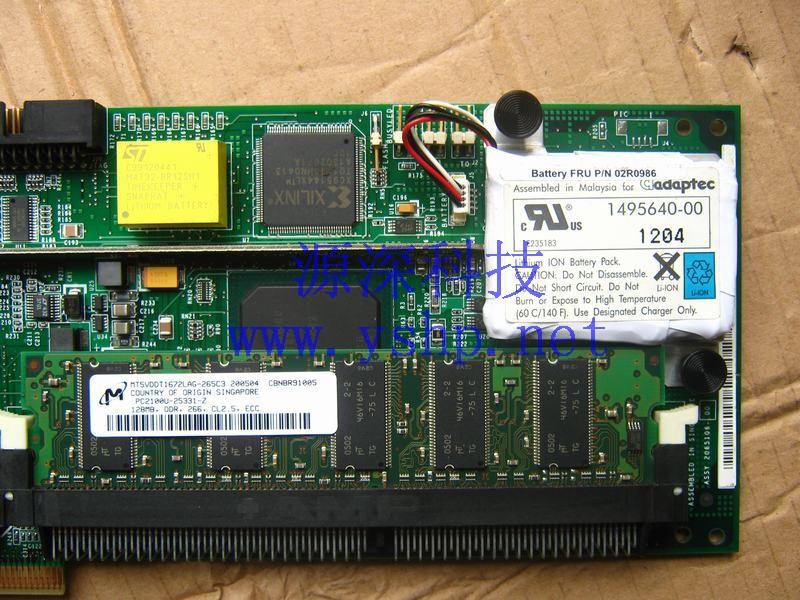

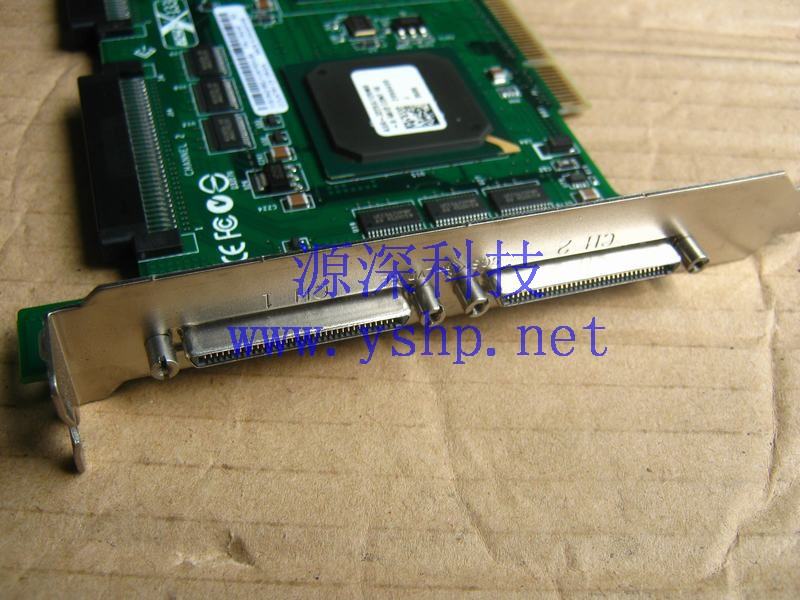

产品名称：IBM 原装 ServeRaid 6M阵列卡 6m 128M cache 13N2197 13N2185

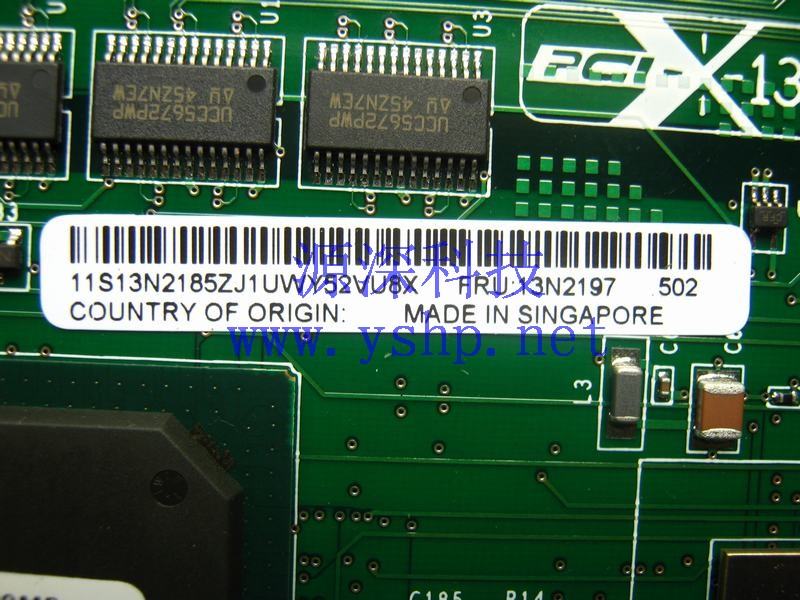

备件号：13N2197 13N2185

IBM Serve RAID 6M PCI-X Ultra 320 SCSI Card

Detailed Description:
This Serve RAID-6M Controller option, based on high-performance PCI-X architecture and powered by an Intel scale microprocessor, delivers advanced RAID and Ultra320 SCSI technology. Combined with an series Ultra320 hard disk drive (HDD) and a supported series server, this controller delivers a powerful solution to help solve your business-critical, high-speed data storage requirements. Satisfy midrange to advance high-availability, data-storage applications by installing this high-performance ServeRAID-6M Controller option in your series server. This two-channel Ultra320 SCSI RAID controller delivers excellent performance; speeds access to stored data and helps improve server processor utilization and throughput. This controller option includes an advanced, Java-based Serve RAID Manager that easily integrates into IBM Director to provide outstanding setup, monitoring and administration of the RAID array.

RAID Level:
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 1E, RAID 1E0, RAID 00, RAID 5EE

Device Type:
Storage controller (RAID) - RAID - plug-in card

Interface(s) Required:  PCI-X

Controller Interface Type:  Ultra320 SCSI

Data Transfer Rate:  320 MBps

Buffer Size:  128 MB

Supported Devices:  Disk array (RAID)

Channel Qty:  2

Max Storage Devices Qty:  28


 适合机器：IBM x206/x206m/x225/x226/x235/x236/x255/x260/x335/x336/x345/x346/x360/x365/x366
/x382/x440/x445/x460&MXE-460/x325/x326/x326m /x3650/x3800/x3850/x3950E   HS20(8843),HS21(8853,XM7995)，PEU2(25K8373)等服务器

保修期限：保修一个月
